Cassava Starch Production Line

1. The whole machine has good stability and low noise.
2. The separation of slag and slurry can be completed at one time; the starch is of good quality and relatively fine, and the slag does not contain slag skin, slag lump,or diced matter.
3. Save consumables, automatically feed potatoes, crush, separate, discharge slurry, and discharge slag.
4. The licker roller works with water, which shortens the oxidation reaction in the air of the slag slurry and improves the purity of starch.



After the starch raw material is sent into the feeding port, it is crushed into filaments under the action of the licker-in roller, and then brought into the cone grinding seat. Driven by the screw shaft, it is squeezed into the narrow gap formed by the inner shell of the cone mill, and the material is further squeezed, crushed and ground under the rotation of the inner shell of the cone mill, so that the starch is released from the fiber. After the ground material is squeezed into the separation cylinder, it is fully mixed with water under the action of the stirring shaft. The free starch dissolves in the water, flows out through the separation sieve and is collected for use. The remaining dross is pushed by the stirring shaft and is Push it out of the separation cylinder.

This machine line can be used for processing potato, sweet potato, taro, pueraria, lotus root starch etc.

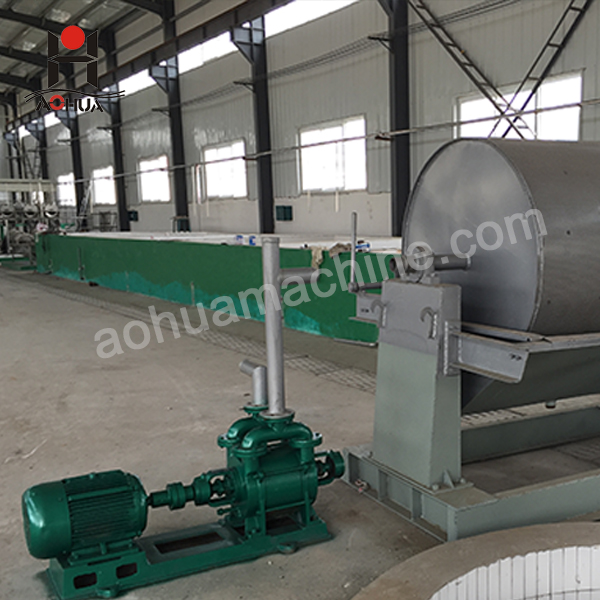

We have different model of machine for different capacity requirement.  The whole machine line including washing peeling machine, slurry separator, vacuum dewatering machine etc.
